BarzzLocks SKU: LPX431

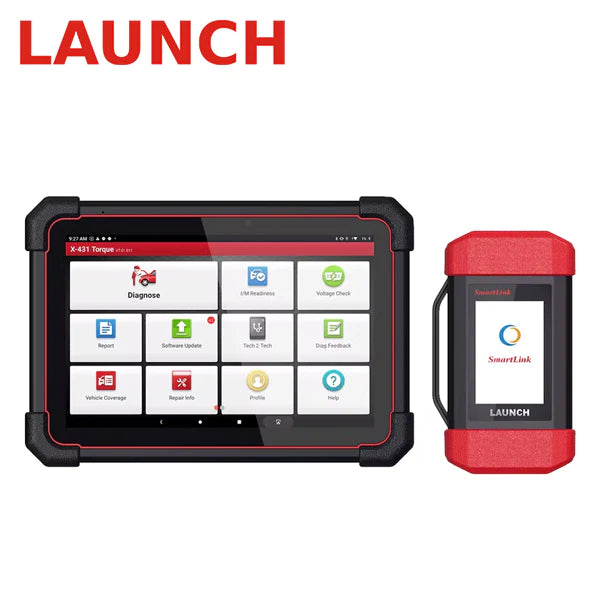

Launch – X-431 Torque Link Diagnostic Tool

$3,800.00 $4,200.00 Save $400

Shipping calculated at checkout

Only 1 left!

 X-431 Torque LINK is an advanced intelligent car diagnostic device which is developed based on Android 10.0 system. Using 2.0Ghz 4-core high-efficiency processor, 10.1-inch color display, 4GB RAM+128GB ROM large storage, equipped with high-endurance battery, running faster, more stable and longer.

X-431 Torque LINK supports full system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD\DOIP diagnosis protocol.


  • Full System & Full Function Diagnosis
  • Auto Detect Vins in Minutes
  • Bi-Directional Control / Remote Diagnostic Function
  • Dual Band 5G & 2.4 G Wireless Connection with Ultra-Fast Speeds
  • Advanced Vehicle protocols including DOIP, CANFD ETC
  • Support X431 Fix Repair Information. Driven By Motor
  • Code Assist Databse By Identifix
  • SGW Security Gateway Approved By FCA
  • Pin detection function to detect Pin volt, Data Rate and protocols
  • More available software can be purchased via In-APP mall
  • Build-in passenger car software, truck software purchase alone
  • One-click upgrade for car models software
  • Non-16 pin passenger car adapter cable kit covered
  • Support USB Type C, USD Type A interface, Etc


  • Android 10.0
  •  10.1 inch touch screen 1280*800
  •  Rear 8 MP, Front 5 MP
  •  Battery: 47880mWh (7.6V, 6300mAh)
  •  CPU 2.0 GHz Quad-core
  •  Memory:4GB+ Storage :128GB
  •  Working Temperature: -20℃–70℃-
  •  Temperature: 0℃–50℃
  •  Connectivity: WiFI/Bluetooth
  •  Size: 274*190*40.5 (mm) / 10.79*7.48*1.59 (inch)
  •  Weight:  1.45 kg


  • Power adapter, 5V / 5A,
  •  USB A-type to B-type cable
  •  Six Kinds of Gigabit Networks (Blue)
  •  Type A to type C USB data cable
  •  OBD16 male to HDB15F test main line (with DC)
  •  HD15M to OBDII 16 male integrated test connector
  •  Multilingual quick start,
  •  Universal PIN envelope
  •  SmartLink C Diagnostic Connector
  •  Front camera host 4 +128
